GlideGard™ Side Folding Grilles

Side Folding Grilles

Model Number: ESG32

Side Folding Security Grilles

A heavier-duty side folding grille, GlideGard™ provides enhanced security in applications where more robust supporting structures are available. Our vandalism-resistant design is useful for use in applications such as food courts, schools, sports complexes and public transit.

Track Information

Extruded heavy-duty aluminum section 1 3/4" high by 1 5/16" wide track mounts to the overhead structure to support the entire unit. No floor track is required. Track required for curved openings has a standard 14" radius: 90°, 120°, 135° and 150° curves are standard.

Of note, custom radius angles are also offered, please contact us. Multiple connecting sections can be incorporated. Bi-Part opening is also available.

Sizes

Standard construction up to a maximum height of 14' 0”
Maximum recommended width of a single unit section is 30’0” – larger openings would require a multi-section curtain
Minimum width is 2’0”, minimum height is 4’0”
For openings that fall outside of the standard construction, please contact us

Usage

Constructed for manual push/pull operation with a daily use limit of up to 20 cycles per day.

Specification Sheets

GlideGard Side Folding Grille Specification

Use the Specification Generator to create custom specifications.

Drawings

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.

Codes & Listings

ISO 9001:2008
LEED® Compliance

See Codes and Listings page for detailed information.

LEED Information

Grille Curtain Construction

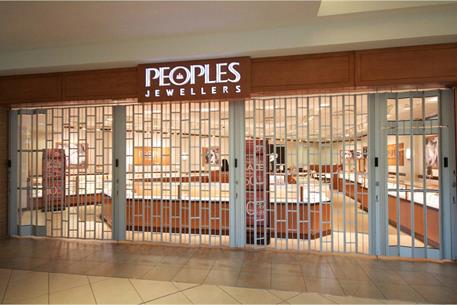

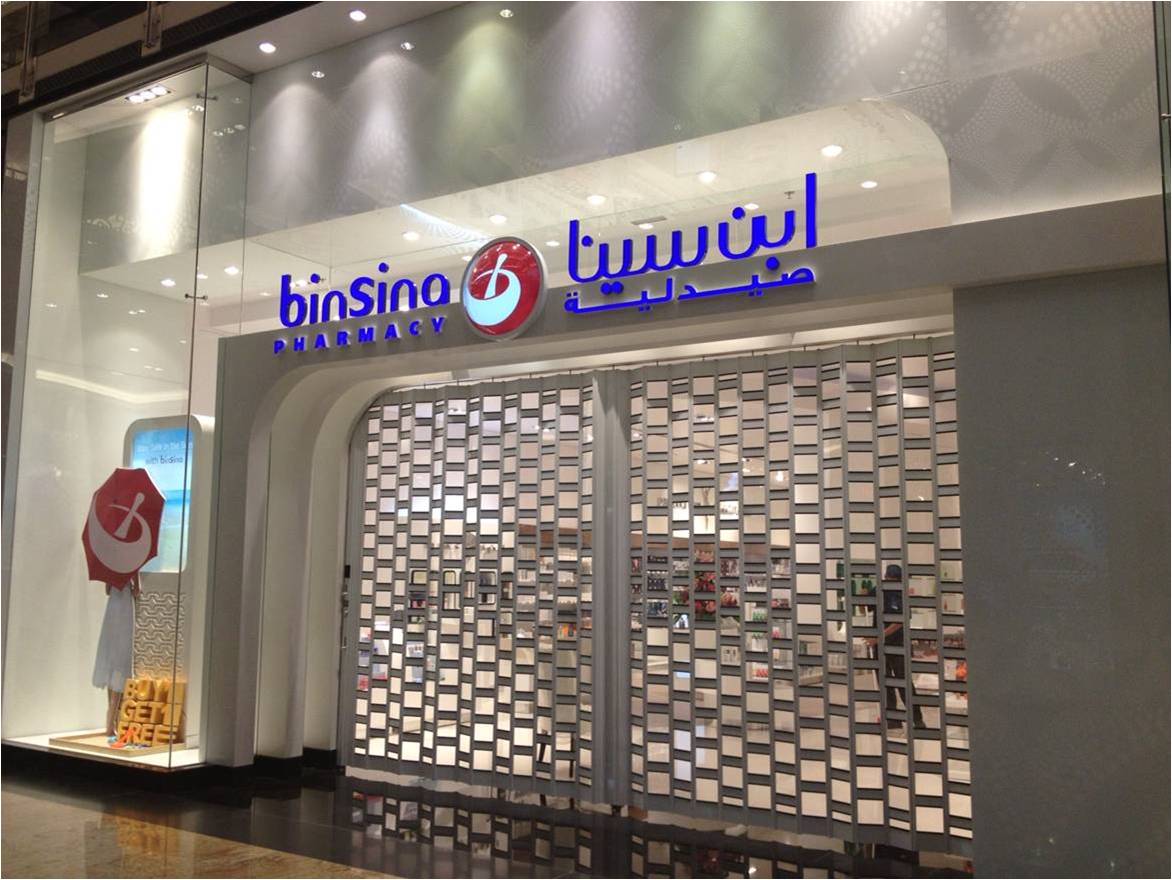

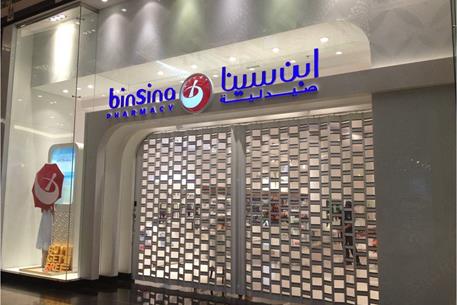

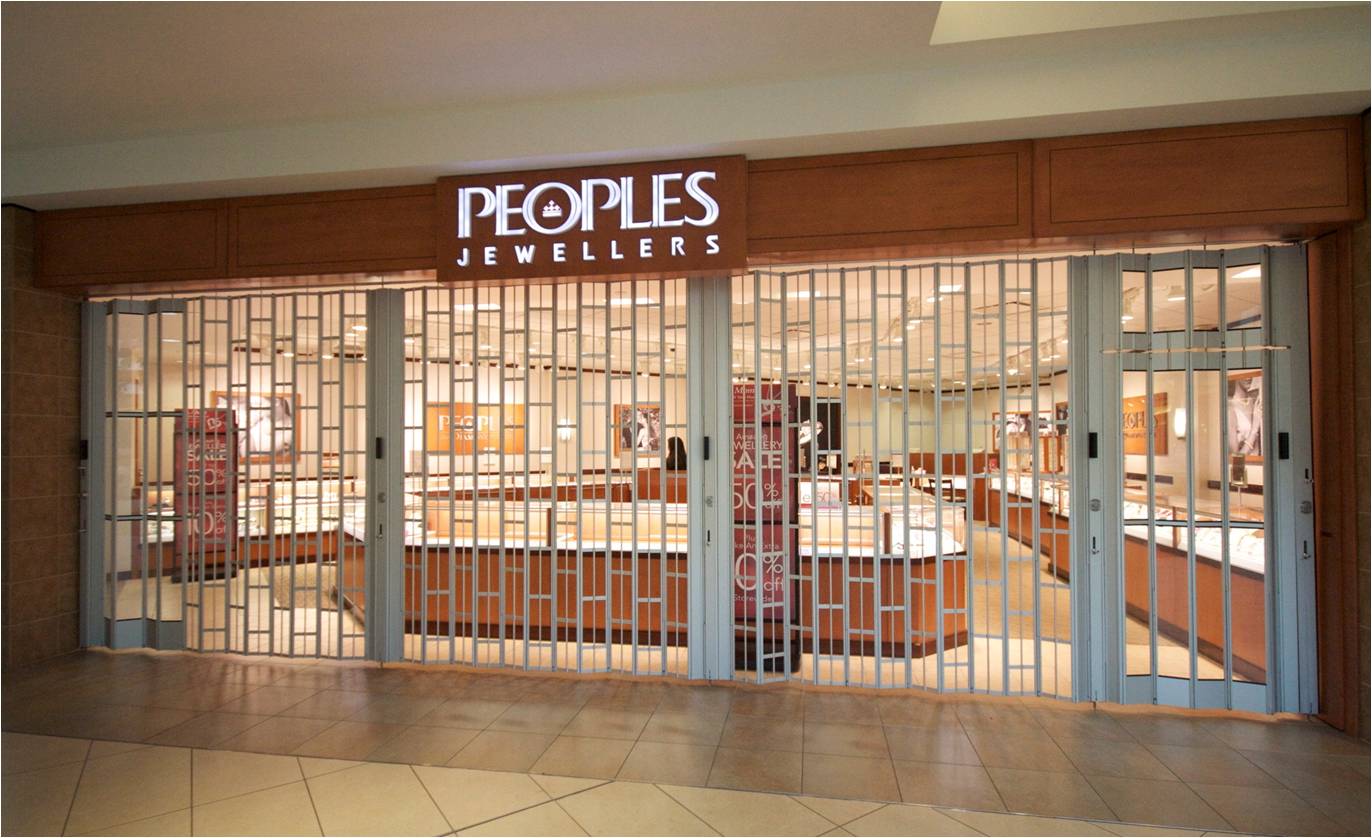

GlideGard Brick

GlideGard Brick Option

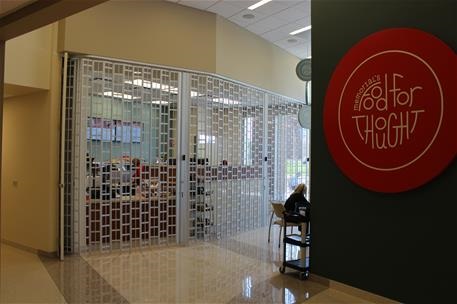

GlideGard Straight

GlideGard Straight Option

Unique Design Solutions

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Grille Single Slide or Bi Parting Construction

This side folding grille can be designed to close at the center of the room in divided sections or extend fully from one wall to the other.

Learn More

Multiple Height Units

Available for openings that different heights in the same area.

Learn More

Pocket Door

Available for side closing products up to 12 feet high, this heavy duty 12 gauge steel pocket door and frame assembly neatly closes off the pocket area of a stored partition.

Learn More
